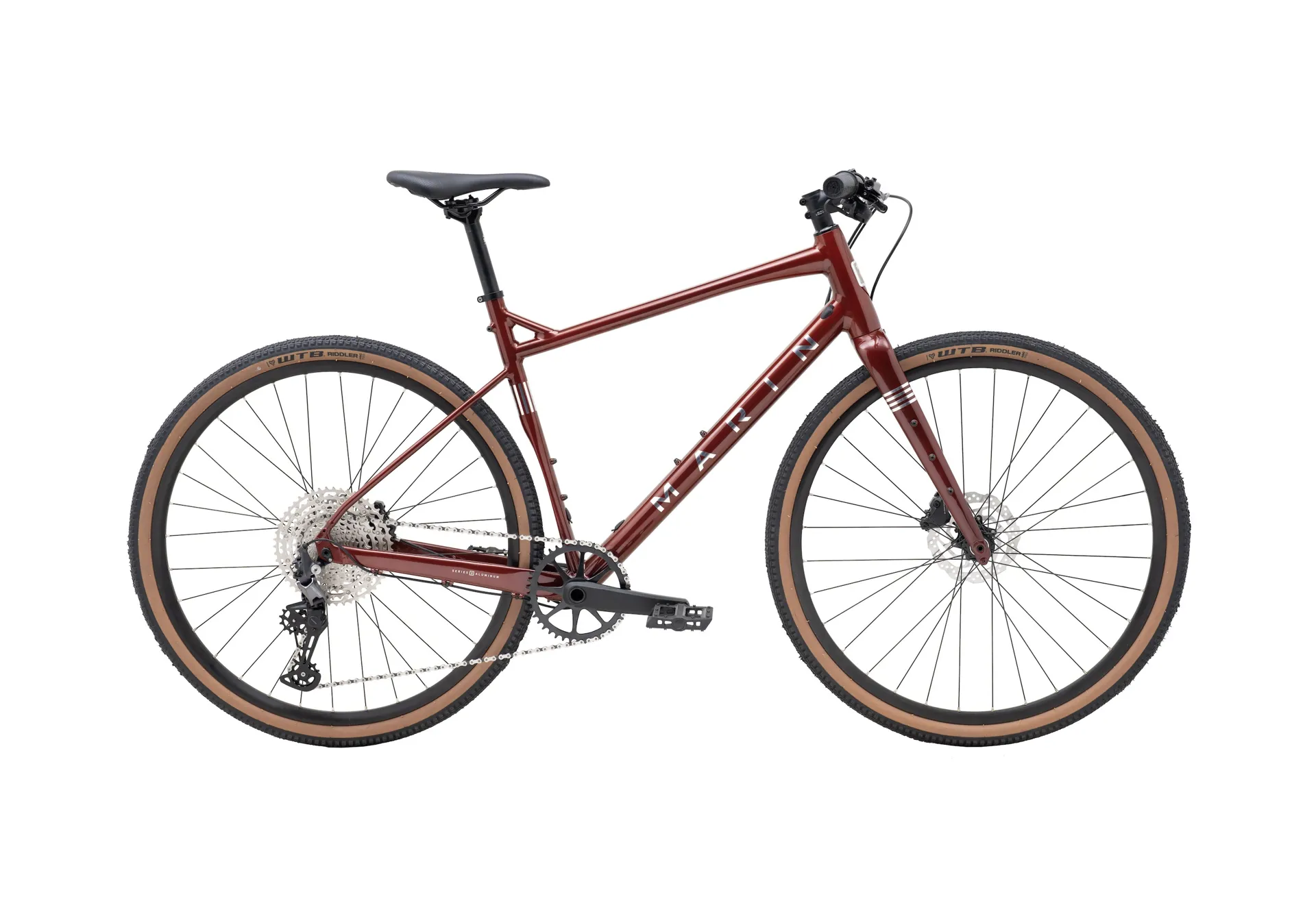

Marin DSX 2 700c Hybrid Gravel Town 700c Aluminum Red Bike
Marin DSX 2 700c Hybrid Gravel Town 700c Aluminum Red Bike
Marin

Marin DSX 2 700c Hybrid Gravel Town 700c Aluminum Red Bike

£999.00 £1,155.00 14% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Please See Our Returns Page For Full Returns Policy

RETURNS

----
Our policy

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

In relation to the consumer rights act of 2015 customers have up to 14 days to make a return in the case of faulty, damaged, or not as described goods.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. The customer has the right to reject goods that are faulty, damaged or not as described and the right to a repair, replacement or refund in this circumstance.

In the case of goods ordered incorrectly (due to customer misunderstanding) or customers changing their minds post-purchase, we do not and are not legally required to offer refunds or accept returns, but instead can offer to exchange goods or provide store credit at our (Chester Cycle Hub Ltd.'s) discretion.

Any goods purchased on special order (products not currently or regularly stocked by Chester Cycle Hub Ltd.) are strictly not eligible for refund or return due to incorrect selection by the customer or the customer changing their mind post-purchase (If the special order is faulty, damaged or not as described, in accordance with the consumer rights act of 2015 it will be eligible for return and either refund, replacement or repair).

Please note that in some case, replaced, repaired or exchanged items may differ in colour or style due to the originally purchased product if the originally purchased product is no longer available, discontinued or otherwise changed.

Your legal rights
When you buy goods from a business, in law you have a number of rights as a consumer. These include the right to claim a refund, replacement, repair and/or compensation where the goods are faulty or misdescribed.



Marin DSX 2 700c Hybrid Gravel Town 700c Aluminum Red Bike

Brand:Marin

Code:73755300

The Marin DSX is everything we want from a modern, flat-bar gravel bike.

Zippy aluminum frames, carbon forks, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Based around the Gestalt X drop-bar, we made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.

The Marin DSX 2 is built around a Series 3 aluminum frame and a lightweight, carbon fork that’s packed with mounting points for bikepacking gear. There’s also a 12-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

Key upgrades over the DSX 1:

  • Shimano Deore 6100 1x12 drivetrain
  • Tektro R285 hydraulic disc brakes
Technical Information

SPECIFICATIONS

  • FRAME

    Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

  • FORK

    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

  • RIM

    Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

  • HUB REAR

    Forged Aluminum, 142x12mm, Disc Specific, 32H

  • HUB FRONT

    Forged Aluminum, 100x12mm, Disc, 32H

  • SPOKES NIPPLES

    14g Black Stainless Steel

  • TIRES

    WTB Riddler, 700Cx45mm

  • DERAILLEUR REAR

    Shimano Deore, RDM6100, 12-Speed

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    Shimano Deore, SLM6100, 12-Speed

  • CRANKSET

    Forged Aluminum, 42T Steel Narrow Wide Chainring

  • BOTTOM BRACKET

    Sealed Outboard Bearing

  • CHAIN

    KMC X12

  • CASSETTE

    SunRace, 12-Speed, 11-51T

  • BRAKES FRONT

    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

  • BRAKES REAR

    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

  • BRAKE LEVERS

    Tektro Hydraulic

  • HANDLEBAR

    Marin MiniRiser

  • STEM

    Marin 3D Forged Alloy

  • GRIPS

    Marin MTB

  • HEADSET

    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

  • SEATPOST

    Marin Alloy

  • SADDLE

    Marin DSX

  • PEDALS

    Marin Oso OE Flat

  • EXTRAS

    Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.

Sizing Information

GEOMETRY

DSX 2 geometry diagram
SMLXL
STACK544.4572.5600.6628.7
REACH380405420435
HEAD TUBE ANGLE69.5°69.5°69.5°69.5°
HEAD TUBE LENGTH120150180210
SEAT TUBE ANGLE74°74°74°74°
SEAT TUBE LENGTH430480520558
TOP TUBE EFFECTIVE536.1569.2592.2615.3
BB HEIGHT279.5279.5279.5279.5
BB DROP80808080
CHAIN STAY425425425425
WHEEL BASE1024.4210601085.41110.9
STAND OVER HEIGHT658.76700.51730.39758.5
FORK OFFSET50505050
SEATPOST DIAMETER27.227.227.227.2
HANDLEBAR WIDTH640680680680
STEM LENGTH70707070
CRANK LENGTH170175175175

All lengths in millimeters
