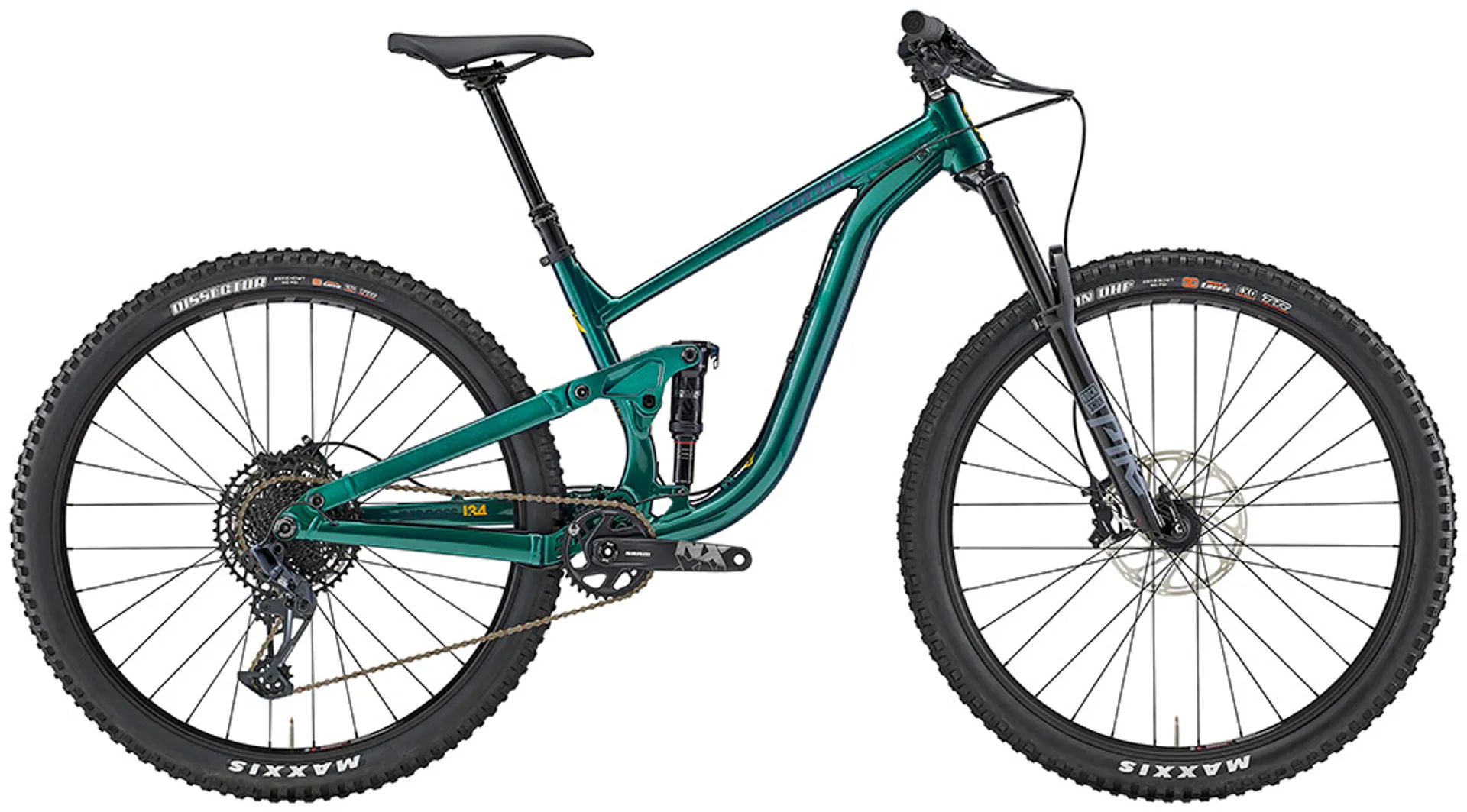

2022 Kona Process 134 DL 29 Full Suspension Alloy Mountain Bike Green

Season:2022

Brand:Kona

Code:KPROC134DL

Dee - Luxe. That's what the DL stands for in Kona's bike lineups and that's the ride that the Process 134 DL delivers! Sporting that goldilocks zone frame geometry that the Process is loved for, the Dl model steps up the performance in every area! Read below for the highlights!

Rockshox Ultimate/Select Suspension: With Rockshox' 140mm Pike Select RC Damper Fork out front and a Rockshox Deluxe Ultimate Shock tending to the 134mm of rear travel, you'll be wanting for nothing in the suspension department with the Process 134 DL.

SRAM G2 RS Brakes: Second Generation SRAM Guide brakes featuring the Swing-Link technology to provide top tier modulation will keep you fully in control at all times!

SRAM NX Drivetrain: SRAM's 12 speed NX drivetrain is built to last and provides a super-wide range of gearing for any situation. Put the power down on the descents then swiftly drop into your 50 tooth climbing gear when the trail pitches sharply back up again! Whatever the situation, the Process 134 DL is specced to keep you rolling at maximum efficiency!
Technical Information
FRAME MATERIALKona 6061 Aluminum Butted 134mm Travel
SIZESS, M, L, XL
REAR SHOCKRockShox Deluxe Ultimate Trunnion
FORKRockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing
CRANKARMSSRAM NX Eagle DUB
CHAINRINGS32t X-Sync Eagle
B/BSRAM DUB PF92
PEDALSn/a
CHAINSRAM SX-Eagle
FREEWHEELSRAM NX-Eagle 11-50t 12spd
CHAINGUIDEn/a
F/Dn/a
R/DSRAM GX-Eagle
SHIFTERSSRAM NX-Eagle
BRAKE CALIPERSSRAM G2 RS
FRONT BRAKE ROTORSRAM Centerline 200mm
REAR BRAKE ROTORSRAM Centerline 180mm
BRAKE LEVERSSRAM G2 RS
HEADSETFSA Orbit 1.5 EP ZS
HANDLEBARKona XC/BC 35
STEMKona XC/BC 35
SEATPOSTTranzX Dropper +RAD Internal 31.6mm
SEAT CLAMPKona Clamp
GRIPSKona Key Grip
SADDLEWTB Volt
FRONT HUBFormula 110x15mm
REAR HUBFormula 148x12mm
SPOKESStainless Black 14g
RIMSWTB KOM Team i30 TCS
FRONT TIREMaxxis Minion DHF EXO TR 3C 29x2.5" WT
REAR TIREMaxxis Dissector EXO TR 3C 29x2.4" WT
PAINT COLORGloss Metallic Green w/ Matte Black Forest & Indicator Decals
Sizing Information
SIZESMLXL
1ST LENGTH385410450485
2TT LENGTH569596625664
3REACH425450475510
4STACK601605615625
5STANDOVER715725725725
6HT ANGLE66666666
7HT LENGTH9398109120
8ST ANGLE76.576.576.376.2
9CS LENGTH427427427427
10BB DROP33333333
11BB HEIGHT342342342342
12WHEELBASE1159118612161255
13FRONT CENTER734761791830
14FORK LENGTH551551551551
15FORK OFFSET51515151
